Electrical shelters achievement:
CLC 40 air conditioners, for ACTIA
EURODIFROID was pleased to design and deliver a series of 40 CLC type side-mounted air conditioners for electrical shelters to meet the cooling needs of ACTIA (SODIELEC), which designs, develops and integrates satellite communication systems, fixed or mobile.
This CLC air conditioning system is designed to cool an enclosed space containing rack-mounted electronic equipment.
The volume to be air-conditioned constitutes the technical area of a satellite telecom ground station in a shelter, transportable by truck, boat, plane, etc.
Some characteristics of the shelter
- Equipped shelter integrating electronic equipment and a telecommunications antenna
- Deployment in any type of environment (global geographic deployment)
- Mobile and transportable shelter

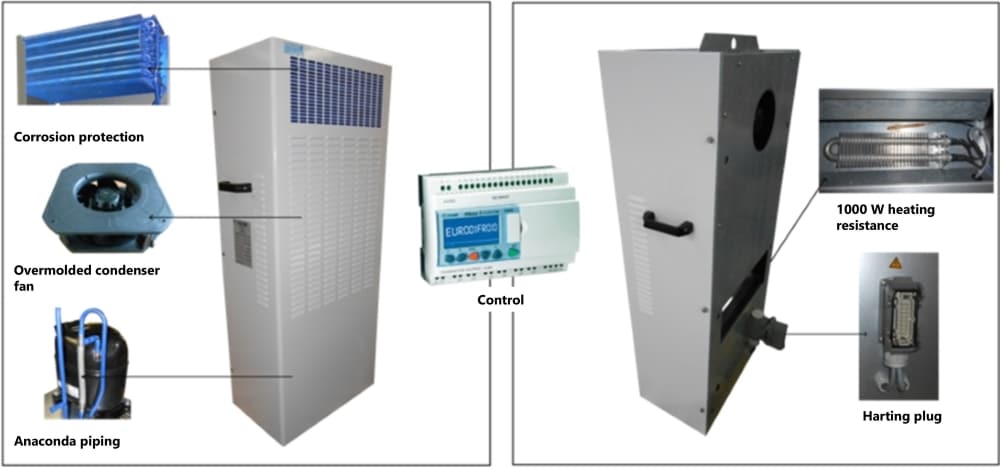

The device solution
- CLC 40 AAMEXTT Side-Mounted Industrial Air Conditioner (Special “Outdoor” Version)
- Minimum Ambient Temperature: -20°C / +55°C
- Power Supply: 230 V, 1, 50 Hz
- Rated/Maximum Current: 11.8 A / 31 A
- Line Protection: 16 A
- Cooling Capacity: 3800 W
- Power Consumption: 2500 W
- Protection Rating: IP54
The EURODIFROID “PLUS“:
Going beyond the product: adapting a precise, reliable, and optimized solution to perfectly match the need, with the following in this project:
- 1 intelligent control system to manage the operation of 2 air conditioners in redundancy
- Air conditioner resistant to all types of environments (harsh conditions, extreme cold, extreme heat, etc.)
- Oversized, molded condenser fan
- Remote control of heating and cooling functions via programmable logic controller (PLC)
- PLC cabinet supplied with a custom program managing redundancy, boost mode, heating/cooling control, and a human-machine interface (HMI)
- Corrosion protection to guarantee durability in all types of environments
- Pre-start dehumidification function
- Vibration resistance with Anaconda reinforcement on the refrigerant piping and NORLOCK locking devices on all screws
- Numerous ergonomic and integrated features within the shelter
