// RDD 800 cooler for industrial ovens //
A cooler for an oven : what for?
We find part of our technical cooler team in St Quentin Fallavier (38), at BMI, specialist in vacuum ovens for industrial use (aeronautics, automotive, medical…).
But then: why “cooling down an oven”?
Vacuum heat treatment furnaces are capable of performing numerous processes such as gas quenching, annealing, tempering, and brazing.
These high-value-added processes in vacuum furnaces demand impeccable quality. This quality depends in part on the quality of the vacuum within the furnace.
To achieve a suitable vacuum level, the furnaces are equipped with a diffusion pump, based on the principle of oil vaporization. This oil vapor must absolutely not rise into the treatment chamber, and one solution to prevent this is to condense it.
It is during this crucial condensation stage that our RDD 800 cooling unit (direct expansion chiller, detailed specifications below) comes into play.

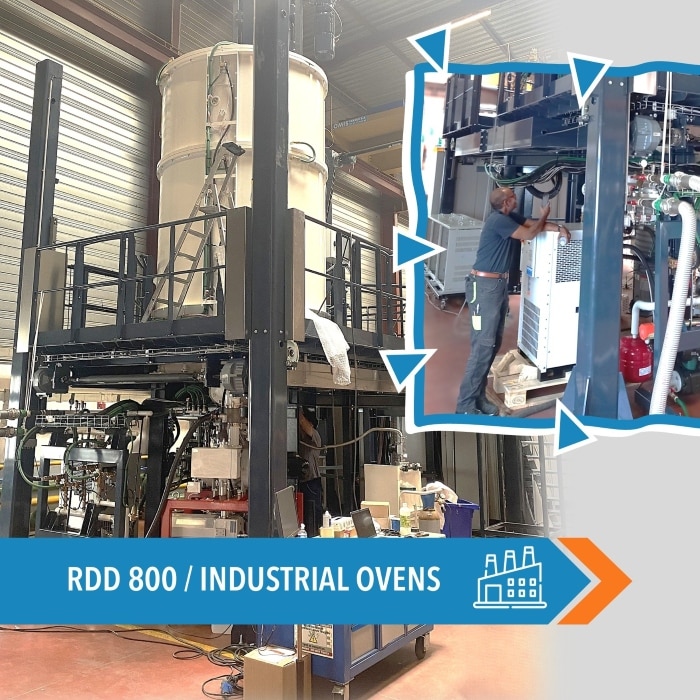

During our commissioning today, we check the chiller installation, the refrigerant charge, proper operation (both at idle and under load), and the settings of the various control parameters.
RDD direct expansion chillers, KWS air/water heat exchangers, CLX side-mounted cabinet air conditioners, CTO roof-mounted air conditioners… for over 10 years, we have been proud to support this excellent company, providing solutions tailored to each configuration and each stage of a demanding industrial process.
Thank you to the BMI team for their warm welcome and continued support!
RDD 800 water cooler technical specifications
- Cooling capacity 880 W at -40°C, 32°C ambient (ambient: min 10°C – max 40°C)
- Integrated electrical control box with general fault dry contact and remote on/off switch
- 2.2 m flexible hoses with shut-off fittings
- Connection to DN 800 baffle (supplied by the customer)
- Frascold D3-13.1 1450 rpm semi-hermetic compressor
- Compressor fan and crankcase heater
- 1/2″ liquid slug tank
- 3 L liquid tank
- FD164S filter drier and sight glass
- Thermostatic expansion valve with MOP load -18°C
- Copper/aluminum fin air-cooled condenser
- 350 mm two-speed axial fan
- High-pressure switch with manual reset, 7-31 bar
- R449A refrigerant
- Control cabinet with digital thermostat display (with IP54 door)
- Sheet metal painted RAL7035
Released on: Sept/29th/2025
